HI-TARGET H32 GNSS RTK GPS

                                              China Supplier 2015 Professional H32 GPS RTK System

      Originated from HI-TARGET¡¯s sophisticated GNSS technology, the H32 is a very competitive GNSS RTK system on the current market with its rugged design and affordable price.
      The H32¡¯s housing is made of General Electric Xenoy 5220U polymer resin to handle severe and harsh filed conditions. With its unique internal design, it can perfectly avoid or lessen obstruction and multipath effect to ensure superior positioning capability.
       The H32¡¯s front control panel with super bright OLED display screen (Resolution 128x64) makes the work more intuitive. No matter it is in the dark or strong sunshine, the screen is comfortably readable to eyes.



 What's the advantage of our GPS RTK?



  Multi Constellation Tracking
72 channels. The H32 is fully compatible with GNSS constellations to track GLONASS, GALILEO, SBAS as well as GPS.

All-in-one Transceiver UHF Radio
The transceiver UHF radio enables the H32¡¯s working mode to be switchable between base and rover in the same receiver. The H32 provides excellent performance in UHF RTK operation with its built-in transceiver UHF radio, which has adjustable transmitting power from o.1 Watt to 2 Watts.

Seamlessly Operation in CORS System
With internal GPRS modem, the H32 works perfectly with corrections from CORS networks in any version of CMR, RTCM without needing to interpret the message but reading seamlessly.

Powerful Battery
Powered by 5000mAh Li-Ion battery.
Static working time 13 - 15 hours
RTK Rover (UHF/GPRS) working time 10 - 12 hours
RTK Base working time 8 - 10 hours

Rugged design, IP67
The special latching technology on flexible flat cables ensures trouble-free operation under impact or vibration. The H32 withstands 2 meters natural fall onto concrete.

Field Controller and Software
There are optional field controllers and software in the H32 package. The controllers with OS Microsoft Windows Mobile 6.5 are fully compatible with the third party software such as Carlson SurvCE, MicroSurvey FieldGenius, Digiterra Explorer, Esri ArcPad etc. besides standard field&GIS software made by HI-TARGET. HI-TARGET controller with WiFi, Bluetooth, and GPRS/3G is completely wireless to connect to any device, collect data and connect to server simultaneously and seamlessly.

Post-processing Software
HI-TARGET Geomatics Office (HGO) software provides total GNSS solution with a complete suite of programs to support HI-TARGET GNSS receivers. Standard Rinex data and HI-TARGET raw data can be processed flexibly and easily.

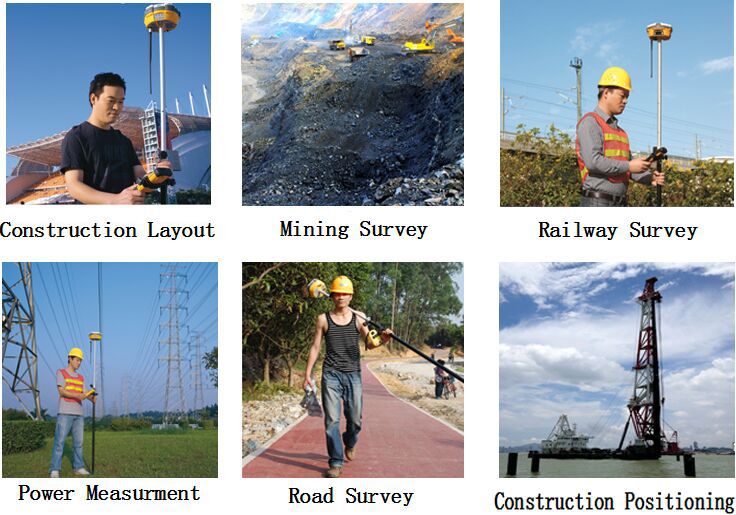

what's the application of our GPS RTK?




What's the Technical Parameters of our GPS RTK?



MEASUREMENTS
• 120 Channels
• Proven NovAtel GNSS technology
• Multipath mitigating technology
• Auxiliary strobe signals, including a configurable output for time synchronization and mark inputs



Satellite signals tracked simultaneously
GPS: L1, L2, L2C
GLONASS: L1, L2
Galileo: E1
GIOVE-A/GIOVE-B (test)
BDS/Compass
SBAS
QZSS


POSITIONING PERFORMANCE

Static and Fast Static GNSS surveying
Horizontal: 2.5mm+0.5ppm RMS
Vertical: 5mm+0.5ppm RMS


Post Processing Kinematic
(PPK / Stop & Go) GNSS surveying
Horizontal: 1cm+1ppm RMS
Vertical: 2.5cm+1ppm RMS
Initialization time: typically 10 minutes for base while 5 minutes for rover
Initialization reliability: typically > 99.9%


Real-time Kinematic (RTK) surveying
Horizontal: 10mm+1ppm RMS
Vertical: 20mm+1ppm RMS
Initialization time: typically < 10 seconds
Initialization reliability: typically > 99.9%


Code Differential GNSS positioning
Horizontal: 25cm+1ppm RMS
Vertical: 50cm+1ppm RMS
SBAS: 0.60m Horizontal



HARDWARE

Physical
Dimensions (w x H): 16.5 cm x 10.5 cm (6.50 in x 4.13 in)
Weight: 1.75kg (3.86lb) with internal battery, internal radio, standard UHF antenna
Operating temperature: -45¡æto +65¡æ (-49¨H to +149¨H)
Storage temperature: -55¡æ to +85¡æ (-67¨H to +185¨H
Humidity: 100%, considering
Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
Shock and Vibration: Designed to survive a 2m (6.56ft) natural fall onto concrete.
Display: 128¡Á64 resolution, 1.54 inch OLED screen


Electrical
Power 6V to 28V DC external power input
Power consumption 2.5W
Automatic Switching between internal power and external power
Rechargeable, removable 7.4V, 4400mAh Lithium-Ion battery in internal battery compartment


Internal battery life
Static 13 - 15 hours
RTK Rover (UHF/GPRS) 10 - 12 hours
RTK Base 8 - 10 hours


I/O interface
1 x Bluetooth
1 x standard USB2.0 port
2 x RS232 serial port
2 x DC power input (8-pin & 5-pin)



COMMUNICATION AND DATA STORAGE

GPRS/GSM
Fully integrated, fully sealed internal GPRS/GSM
Network RTK (via CORS) range 20-50km

HI-TARGET internal UHF radio (standard)
Frequency: 460 MHz with 116 channels
Transmitting Power: 0.1W, 1W, 2W adjustable
Transmitting Speed: Up to 19.2Kbps
Working range: 3~5Km typical, 8~10km optimal

HI-TARGET External UHF radio (standard)
Frequency: 460 MHz with 116 channels
Transmitting Power: 5W, 10W, 20W, 30W adjustable
Transmitting Speed: Up to 19.2Kbps
Working Range: 8~10Km typical, 15~20km optimal



Support other external communication device
For example, external GSM modem.

Data storage
64MB internal memory

Data formats
(1Hz positioning output, up to 50 Hz - depends on installed option)
CMR: CMR+, CMR input and output
RTCM: RTCM 2.1, 2.3, 3.0, 3.1 input and output
RTCA: RTCA
Navigation outputs: NMEA-0183, NovAtel ASCII and Binary logs
